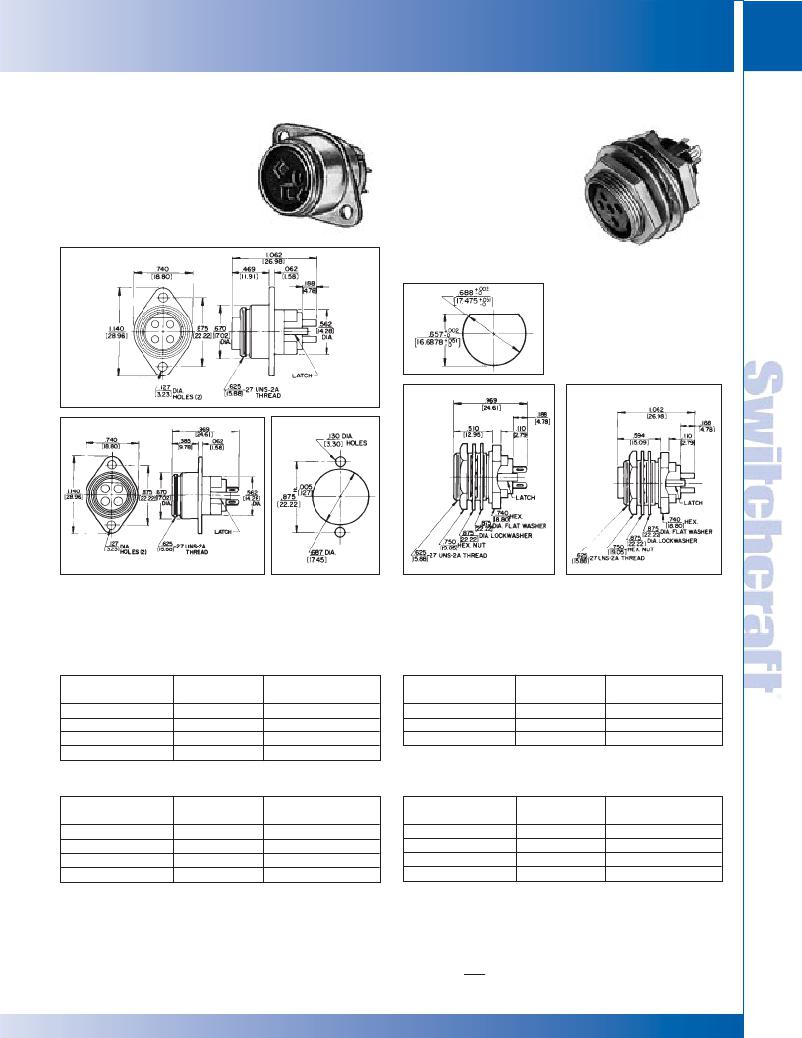

SLIM-LINE CONNECTORS
CONNECTORS & RECEPTACLES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information
SLIM-LINE CONNECTORS (continued)
63
SL10 RECEPTACLES
Flange Mount
SL104F (typical)
SL17 RECEPTACLES
Rear of Panel Mount
SL175F (typical)
SL17 and SL18 Receptacles
Non-turn panel cut-out
Flange mounted; 2 through 5 pins (male) or 2 through 5 contacts
(female). Also 2-, 3- and 4-contact inserts with 2 shunted (N.C.)
contacts.
SL MALE RECEPTACLES
Pin
Rear of panel mount; 2 through 5 pins (male) or 2 through
5 contacts (female). Also 2-, 3- and 4-contact inserts with
2 shunted (N.C.) contacts. Mounting locknut (Part Number
SL01) , lock washer (Part Number SL02) , and flat washer
(Part Number SL03) supplied.
SL MALE RECEPTACLES
Pin
Part Number
SL102M
SL103M
SL104M
Pins
2
3
4
Arrangements
1
2
3
Part Number
SL173M
SL174M
SL175M
Pins
3
4
5
Arrangements
2
3
4
SL105M
5
4
SL FEMALE RECEPTACLES
Contact
SL FEMALE RECEPTACLES
Contact
Part Number
SL102F
SL103F
SL104F
SL105F
Contacts
2
3
4
5
Arrangements
A
B
C
D
Part Number
SL172F
SL173F
SL174F
SL175F
Contacts
2
3
4
5
Arrangements
A
B
C
D
? Available on special order only; contact Switchcraft for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
